The Kimberley2Cape Hema HX-1 Landcruiser Adapters are the perfect mounting solution when it comes to securely mounting a Hema HX-1 or HN7 navigation unit into any 70, 80 & 105 series landcruiser. These mounts are a direct swap for the 70, 80 & 105 series Landcruiser interior rear vision mirror and once paired with a hema mounting cradle, this lightweight yet durable mounts conveniently positions a Hema unit up high in clear view while ensuring unrestricted vision as you navigate the off road tracks.

This mount has now been redesigned to be compatible with 2023 onwards 70 Series models with autonomous emergency braking (AEB) system). To allow fitment the mount will attach offset to the driver side slightly to clear the autonomous emergency braking (AEB) system camera shroud

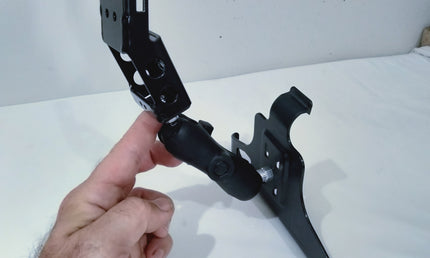

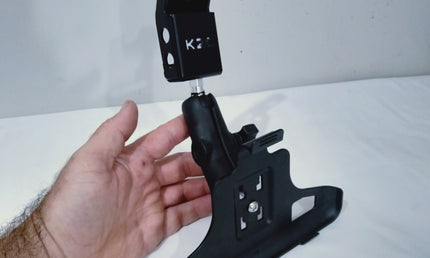

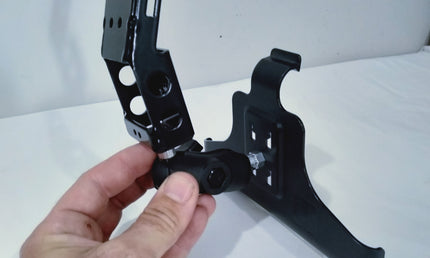

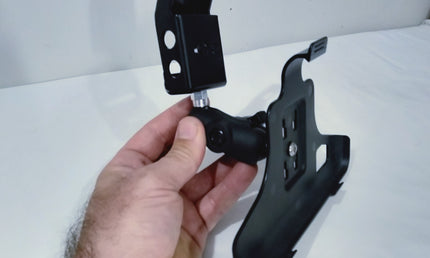

Available in short or long giving your the option to suit your mounting and clearance requirements. These kits are paired with the HX-1 & HN7 Mounting cradle which requires a single 6mm hole drilled for securing a 1" B size ram ball included in the kit as pictured.

Relative Screen Position For Each Kit

Measured from bottom edge of OEM rear vision mirror mount plastic cover to top of the hema unit

Short using a 45mm ball centre to centre double socket arm - 45mm

Long using a 80mm ball centre to centre double socket arm - 80mm

Kit includes:

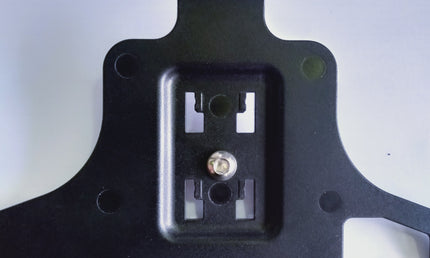

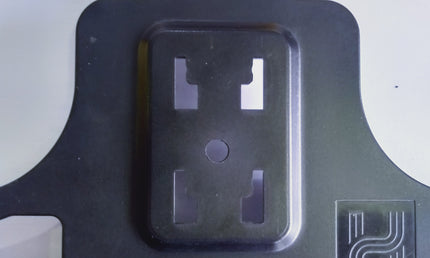

• 1 x K2C black adapter bracket with 1" B size ram mount ball attached

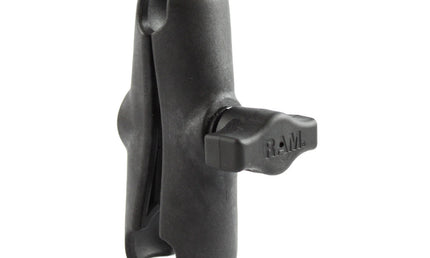

• 1 x Ram Mount 1 " B size double socket arm (either 45mm or 80mm centre to centre as ordered)
• 1 x 1" B size Ram Mount ball with M6 female threaded bolting hole attachment
• 1 x M6 x 12 SS socket button head screw
• 2 x small black zip ties

These Kimberley2Cape Hema HX-1 Landcruiser Adapters is intended for off road use only. It is the purchasers, installers, & users responsibility to check their relevant state or territory regulatory requirements for installation and use prior to purchase and installation.

Please note return and refund of this item will incur a 25% restocking fee.

(Hema mounting cradle not included)

Sale & purchase is subject to Terms Of Service policy
