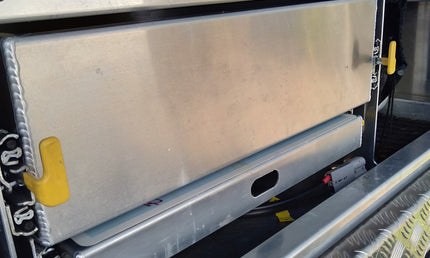

The Kimberley2Cape integrated drawer slide handle cross bar kit is the ultimate solution for conveniently unlocking and open your canopy drawer units which utilize independent heavy duty locking slides with integrated drawer slide handles as pictured.

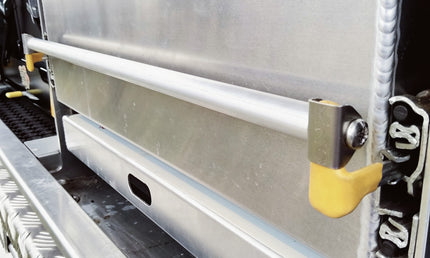

With the Kimberley2Cape integrated drawer slide handle crossbar kit you can now effortlessly open your canopy drawers with one hand. Designed for easy DIY install, the kit requires no alteration or modification of the drawer unit to allow kit installation.

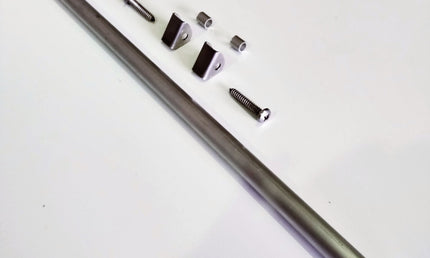

The kit will include:

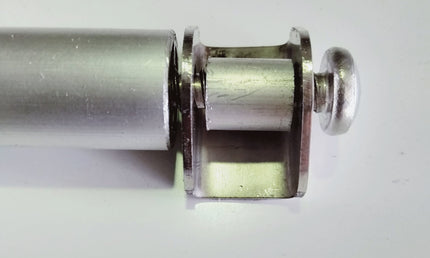

• 2 x integrated drawer slide handles brackets

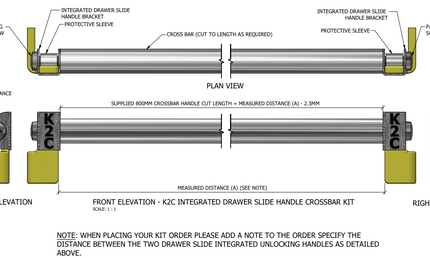

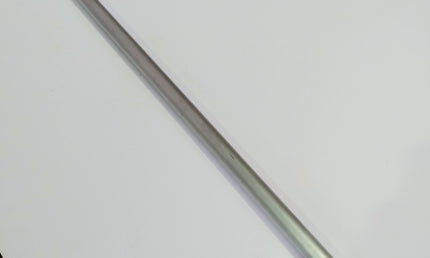

• an 800mm length of aluminium crossbar tube to be cut to length as detailed in installation instructions
• 2 x protective sleeves
• 2 x stainless steel pan head screws to secure the crossbar to the handles brackets

 Required Tools:

• a phillips head screw driver
• a pen or pencil
• a measuring tape
• a hacksaw
• a impact driver with phillips driver bit

Click here to download installation instructions and warranty terms & conditions

Installation Tip: Whilst it is possible to screw the supplied pan head phillips drive screws into the end of the crossbar tube using a screw driver by hand to form the required internal thread, this may be difficult for some individuals lacking the required strength. An easier approach is to run the screws in using an impact driver with phillips drive bit first to form the internal thread then remove the screws.

Disclaimer:  When closing any drawers for transit always check to ensure the handles and crossbar have returned and engaged in the latched position securing the drawer body as intended.

Purchase & installation of the Kimberley2Cape Integrated Drawer Slide Handle Crossbar Kit signifies acceptance by the purchaser of the applicable warranty terms & conditions listed and available for review from the link above.
